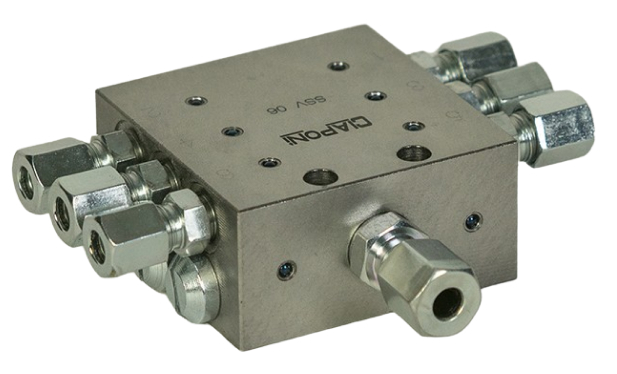

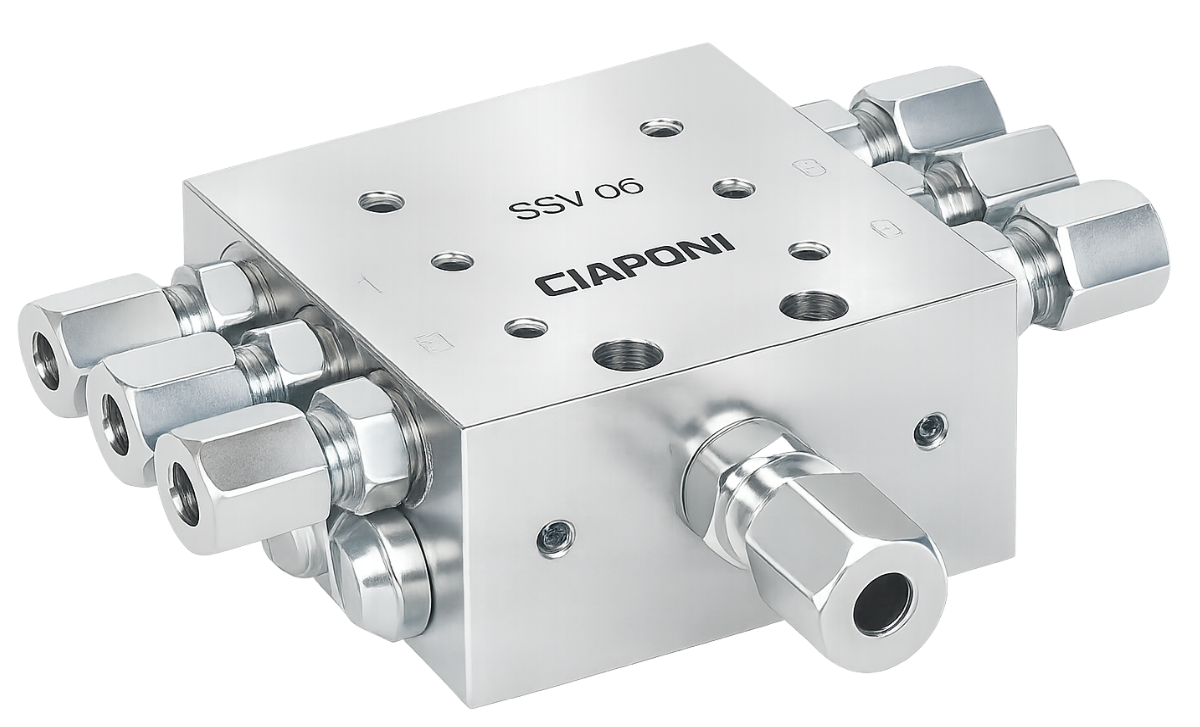

SSV Monoblock Progressive Distributors
for grease and oil Lubrication Systems
The SSV-type progressive distributor features a compact monoblock design engineered for high-pressure lubrication systems. Its robust construction provides excellent resistance to shock, dust, corrosion, and harsh operating environments.
Available with 6 to 20 outlets, each outlet delivers a fixed displacement of 0.20 cm³ per cycle. By combining adjacent outlets, the delivered volume can be increased to meet specific lubrication requirements.
Each outlet is equipped with an integrated check valve that prevents lubricant backflow and ensures reliable system operation.
The SSV progressive distributor is suitable for grease up to NLGI 2 and mineral oils, making it ideal for centralized lubrication systems used in industrial machinery, construction equipment, mining equipment, agricultural machinery, and mobile applications.
| Model No. | Displacement per Outlet |
Max operating Pressure |
Inlet Connection |
Outlet Connection |
L (mm) | Max Differential Pressure Between Adjacent Outlets |
Install hole | Operating Temperature | Compatible Lubricants |
|---|---|---|---|---|---|---|---|---|---|
| CLS-6 | Standard Flow 0.20ml/cyc |
30 Mpa | ø6-ø8 (G1/8) | ø6(M10x1) | 60 | 7 Mpa | 20 | -40°C to +80°C | NLGI #000, #00, #0, #1, #2 Oil ISO VG 68 to 1500 |
| CLS-8 | 75 | ||||||||
| CLS-10 | 90 | ||||||||
| CLS-12 | 105 | ||||||||
| CLS-14 | 120 | ||||||||
| CLS-16 | 135 | ||||||||
| CLS-18 | 150 | ||||||||
| CLS-20 | 165 |
