Progressive dividers
ck & cx for grease & oil systems

The CK and CX modular volumetric dividers or dosers are of progressive and consist of a single steel body inside which small hardened steel pistons slide have to deliver the flow rate between the various outlets. Elements are sealed using highly resistant O-Ring gaskets.

The progressive distributor can be supplied already assembled or to be assembled. The number of dosing elements that make up a distributor varies from a minimum of 3 to a maximum of 10.

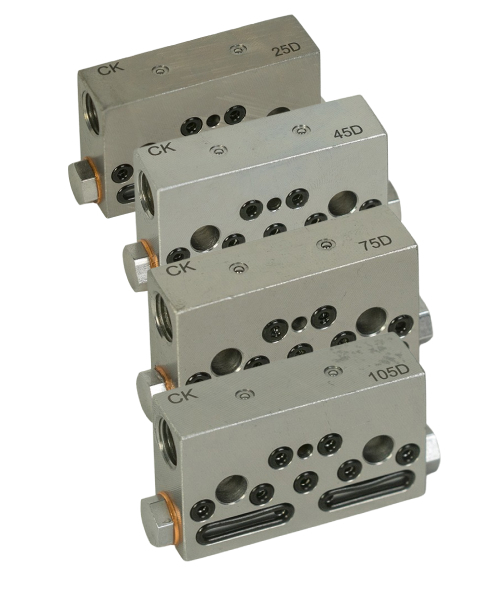

CK modular volumetric distributors are available in the 25 mm³, 45 mm³ and 105 mm³ per cycle versions.

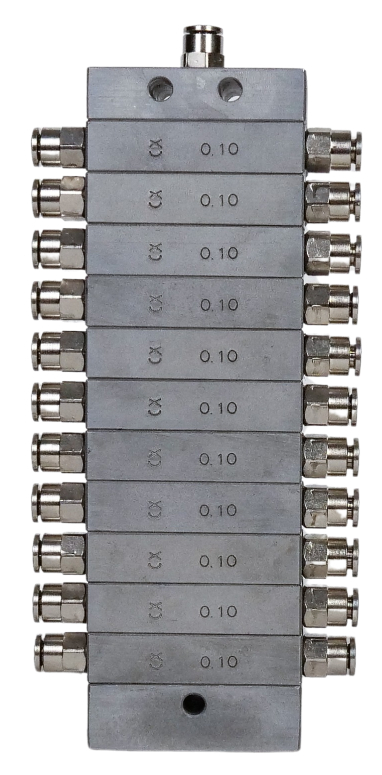

CX modular volumetric distributors are instead available in the 0.05 cm³, 0.10 cm³ and 0.25 cm³ versions.

Technical specifications - Dividers CK

Operating temperature from -30°C to +100°C
Number of dosing elements that can be coupled from 3 to 10
Operating pressure min 10 bar max 300 bar
Max number of cycles per minute 300
Doser flow rate per cycle 25 mm³ | 45 mm³ | 75mm³ | 105 mm³
Inlet connection M10x1 thread
Output connection M10x1 thread
Electric cycle control (optional): By sensor

Technical specifications - Dividers CX

Operating temperature from -30°C to +100°C
Number of dosing elements that can be coupled from 3 to 10
Operating pressure min 10 bar max 400 bar
Max number of cycles per minute 300
Doser flow rate per cycle

0,05 cm³ | 0,10 cm³ | 0,25 cm³
Inlet connection M10x1 thread
Output connection M10x1 thread
Electric cycle control (optional): By sensor
