The EUR 3 electric grease pump is designed for automatic and centralized lubrication systems on industrial machinery, mobile equipment and vehicles. Equipped with pistons driven by an eccentric cam mechanism, it can operate with up to three pumping elements, ensuring reliable lubricant delivery to multiple lubrication points.
Available in 12–24 V DC and 110–220 V AC versions, the pump can generate outlet pressures up to 350 bar. Its robust one-piece housing provides excellent resistance to demanding operating conditions, while the transparent polycarbonate reservoir allows easy visual inspection of the lubricant level.

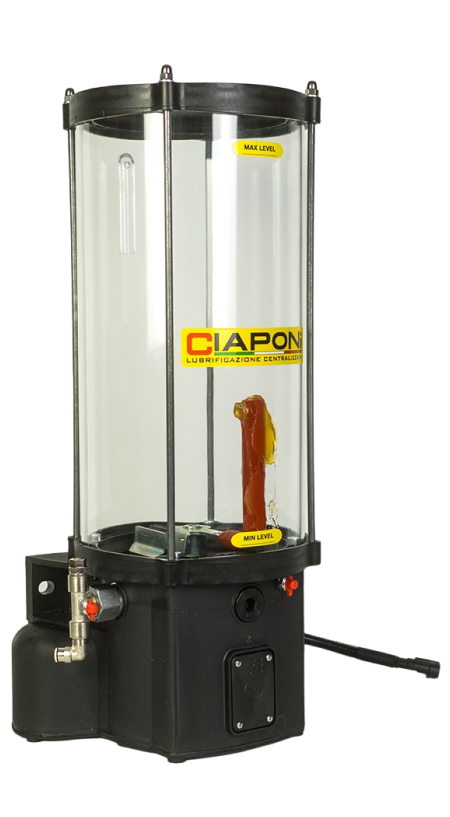

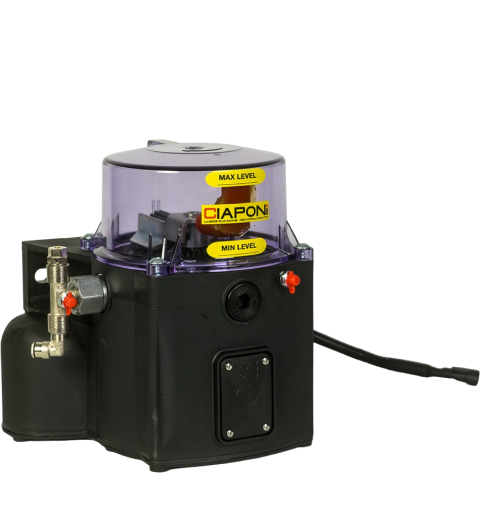

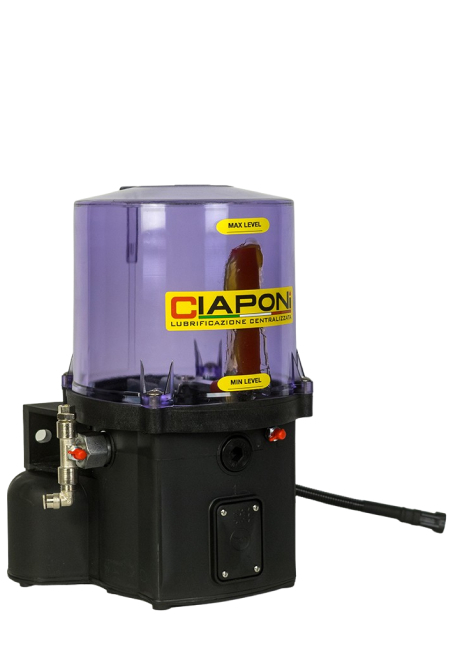

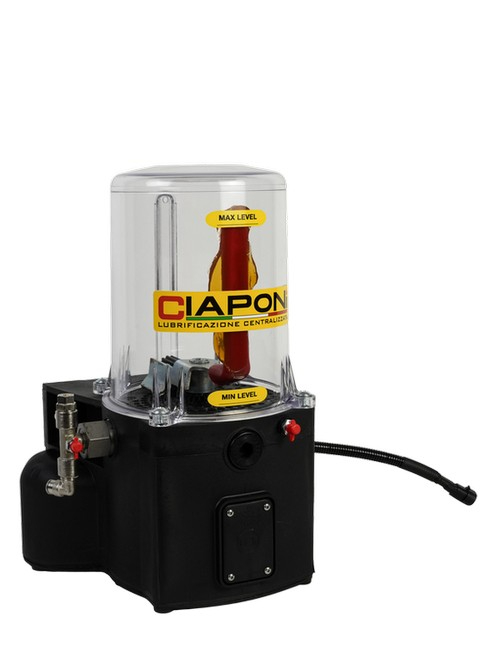

The EUR 3 grease version is available with reservoir capacities of 1, 2, 4 and 8 litres and can be configured with integrated timer control, end-of-cycle monitoring and low-level grease indication. Different pumping element configurations allow the pump to be adapted to the lubrication requirements of a wide range of machinery and operating conditions.
Suitable for progressive lubrication systems and other centralized grease lubrication applications, the EUR 3 electric grease pump provides dependable performance, reduced maintenance requirements and extended component service life. Its durable construction and flexible configuration options make it an ideal solution for demanding industrial and mobile lubrication applications.
Technical specifications - Eur 3 electric drive grease version
| Operating temperature | -30°C to + 80°C |
|---|---|
| Number of outlets | 1, 2 or 3 |
| Pumping elements | Ø4, Ø6 or Ø8 mm pumping element driven by eccentric cam |
| Main line connection | Push-in fitting for Ø6 mm tubing |
| Reservoir capacity | 1, 2, 4 or 8 L with maximum and minimum level indicators |
| Lubricant | Grease up to NLGI Grade 2 |
| Reservoir filling | With lubricator A M10x1 UNI 7663 |
| Air bubble removal system | Rotating roller and reservoir scraper system |
| Protection class | IP65 or IP67 |
| Control system | None, Timer, or Timer with End-of-Cycle Sensor |
| Low-level sensor | Optional for all version |
