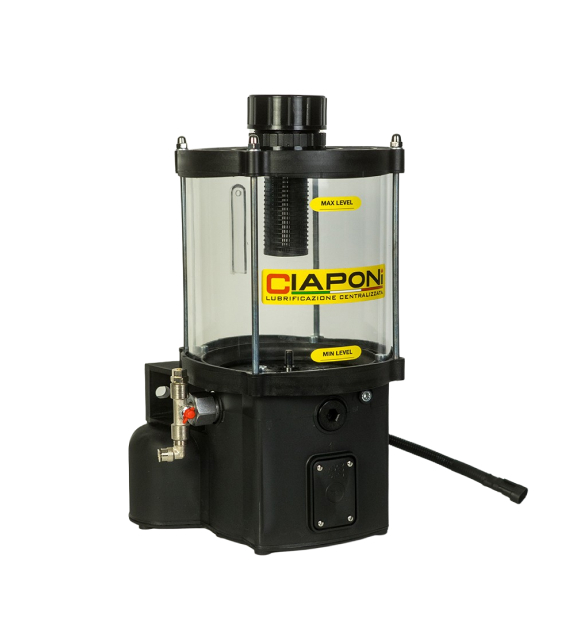

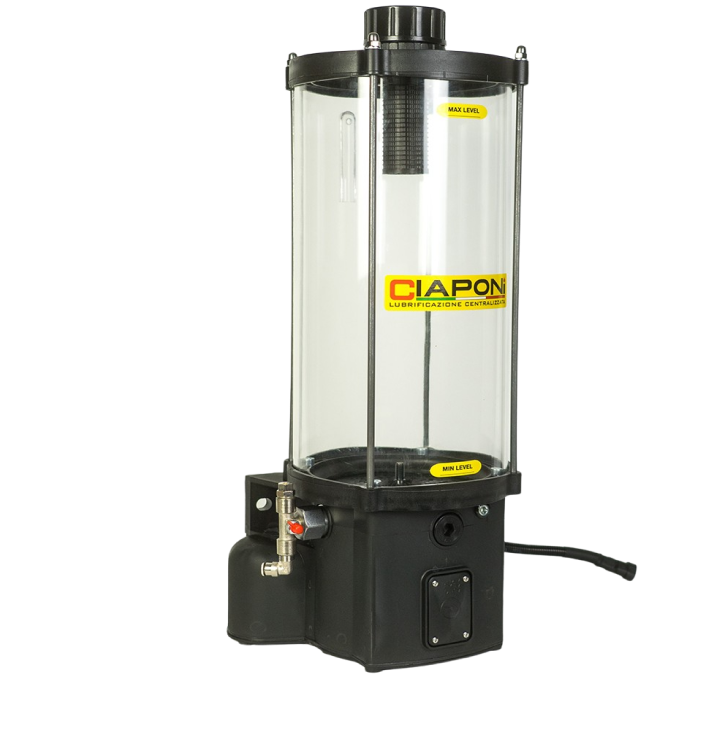

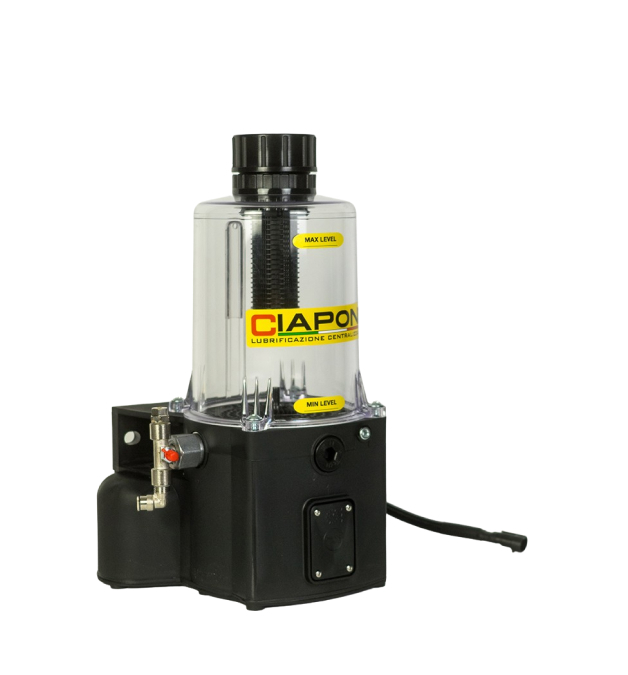

The EUR 3 electric oil pump is a versatile solution for automatic and centralized lubrication systems using oil as lubricant. Designed for industrial machinery, mobile equipment and vehicles, it is equipped with pistons driven by an eccentric mechanism and can operate with up to three pumping elements, ensuring reliable lubricant delivery to multiple lubrication points.
Available in 12–24 V DC and 110–220 V AC versions, the pump can generate outlet pressures up to 350 bar while maintaining smooth and consistent oil flow. Its robust one-piece plastic housing offers excellent resistance to mechanical stress, while the transparent polycarbonate reservoir allows immediate visual inspection of the lubricant level.
The EUR 3 oil version is available with reservoir capacities of 2, 4 and 8 litres and can be configured with integrated timer control, end-of-cycle monitoring and low-level sensor options. Different pumping element sizes allow the pump to be adapted to the lubrication requirements of a wide range of machinery and operating conditions.
Suitable for progressive lubrication systems and other centralized oil lubrication applications, the EUR 3 electric oil pump provides dependable performance, reduced maintenance requirements and extended component service life in demanding industrial environments.
Technical specifications - Eur 3 oil version
| Operating temperature | -30°C to + 80°C |
|---|---|
| Number of outlets | 1, 2 or 3 |
| Pumping system | Ø4, Ø6, Ø8 mm piston, driven by eccentric cam |
| Connection of main pipe | Quick fitting for Ø6 mm pipe |
| Resevoir capacity | 2, 4 or 8 litres with maximum and minimum level indicators |
| Lubricant | Oil viscosity 50–100 cSt at 40°C |
| Reservoir filling | With lubricator A M10x1 UNI 7663 |
| Air bubble removal system | Rotating roller and reservoir scraper system |
| Protection class | IP65 or IP67 |
| Control system | None, Timer, or Timer with End-of-Cycle Sensor |
| Device minimum level | Optional for all versions |
