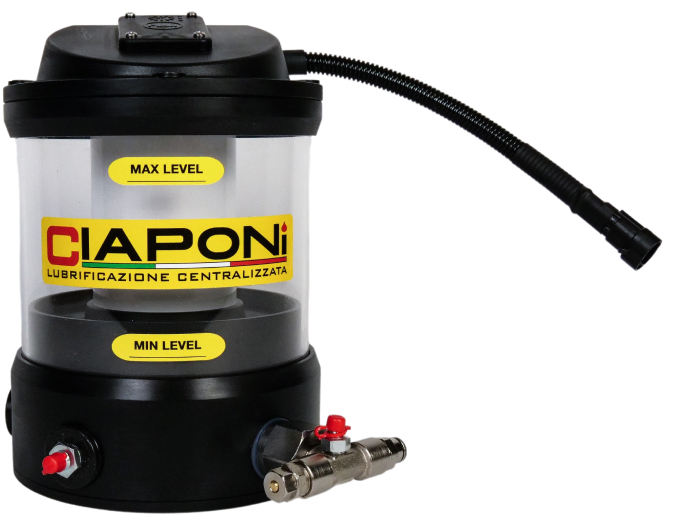

The MODEL K electric pump is a piston pump driven by an eccentric system designed to operate with grease, with a maximum of three pumping elements connected to the centralized lubrication system. Each pumping element can be installed on one of the four available outlets.
One outlet is always dedicated to the cap with the grease nipple for filling the tank. Extremely compact, the pump is made of materials resistant to mechanical stress and corrosion from atmospheric agents.
The tank is in extruded transparent polycarbonate and filled using a grease nipple installed on the cap of one of the unused pump outlets.
Adhesive bands applied to the outside of the tank allow to easily identify the minimum and maximum levels.
The tank capacity is approximately 1.2 litres. A spring-loaded grease presser system keeps the lubricant compact, thus allowing correct operation in all working conditions. The electric gearmotor, of the axial type with planetary gearbox, is powered by low voltage direct current, and can be operated by the user directly or by programming the control timer.
The MODEL K electric pump comes in versions powered by 12 | 24 V DC with a control system with or without programming timer.
Electrical connections are made through wired systems.
Technical specifications - Model K
| Operating temperature | from -30°C to + 80°C |
|---|---|
| Number of outlets | 1, 2 or 3 |
| Pumping system | ø 4, 6, 8mm piston, driven by eccentric cam |
| Connection of main pipe | Quick fitting, for ø6mm pipe |
| Tank capacity | 1,2 Liter with maximum & minimum level indicators |
| Lubricant | Grease up to consistency grade NLGI #2 |
| Tank filling | With lubricator A M10x1 UNI 7663 |
| System for the removal of air bubbles | Spring pressure follower |
| Protection class | IP65 |
| Control system | None, Timer or Timer and Sensor |
