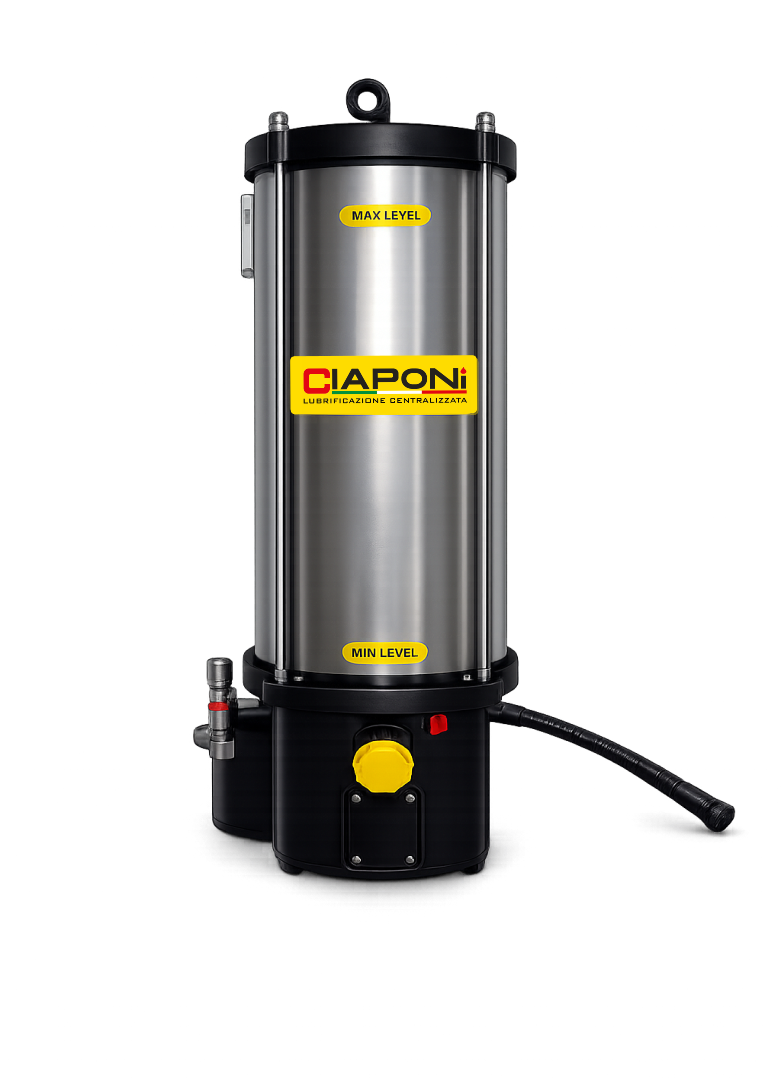

Iron version heavy - duty applications
The EUR 3 IRON VERSION has been developed for the most demanding and heavy-duty applications. In environments such as hydraulic hammers and demolition equipment — where stones, debris and continuous impacts can damage conventional reservoirs — the IRON VERSION features a reinforced stainless steel reservoir specifically engineered to provide maximum mechanical protection.
This heavy-duty solution safeguards the tank during installation and operation, ensuring superior durability, operational reliability and extended service life even in the harshest working conditions.
The electric pump is available in different configurations, with power supply options of 12V or 24V DC and 110V or 220V AC, reservoir capacities of 4 and 8 litres, control system with or without timer programming, end-of-cycle sensor, and minimum grease level indicator.
Technical specifications - Eur 3 iron version
| Operating temperature | from -30°C to + 80°C |
|---|---|
| Number of outlets | 1, 2 or 3 |
| Pumping system | ø 4, 6, 8mm piston, driven by eccentric cam |
| Connection of main pipe | Quick fitting, for ø6mm pipe |
| Tank capacity | 4 and 8 Liters with maximum & minimum level indicators |
| Lubricant | Grease up to consistency grade NLGI #2 |
| Tank filling | With lubricator A M10x1 UNI 7663 |
| System for the removal of air bubbles | Rotating cylinder and windscreen wiper |
| Protection class | IP65 or IP67 |
| Control system | None, Timer or Timer and Sensor |
| Device minimum level | Optional for all version |
