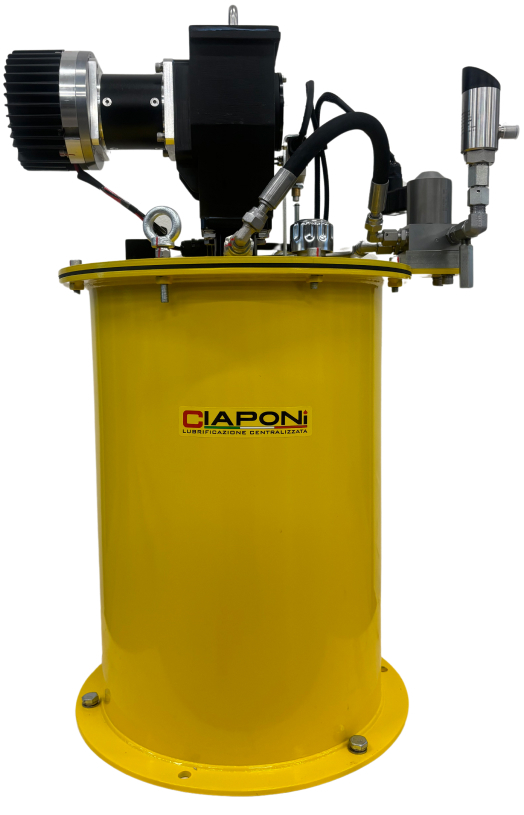

The MODEL CFM electric lubrication pump is controlled by a DC motor.
Its metering quantity is linearly related to the motor speed, making it suitable for demanding and variable working conditions.
Driven by a brushless DC motor and used in conjunction with a control unit, the lubrication pump is designed for single-line centralized lubrication systems.
When lubricant should be delivered to lubrication parts, the motor and solenoid valve are energized and the pump begins to work. After the injector completes its work and the required system oil pressure is built up, the pressure switch transmits the signal to the control unit, which cuts off the power supply of the motor and the solenoid valve, and the whole system relieves pressure and enters the next lubrication cycle.
This pump is versatile – as a centralized lubrication pump for progressive systems.
The CFM pump is a powerful lubrication pump especially developed for the Mining field and heavy Construction machinery.
Technical specifications - Model CFM
| Operating temperature | from -40°C to + 65°C |
|---|---|
| Allowable Grease Weigh | 16 kg | 27 kg | 41 kg | 54 kg | 180 kg |
| Motor Operating Voltage | 24 V DC |
| Motor Power | 200W |
| Motor Electrical Interface | DT04 - 2P |
| Max Pump Output Pressure | 30Mpa |
| Working Voltage of Solenoid Valve | 24 DC |
| Electrical Interface of Solenoid Valve | DIN 43650 |
| Pump Grease Outlet Thread (inside) | G 1/4 |
| Applicable Grease Type | Grease up to NGLI 000 #2 |
